Joinery Techniques

Inspiration

Joinery Toy nolan fike

Alexander Guinn Toy

Inspiration design: pressure fit - key locking joint.

I tried to create a a locking key joint. I wanted to rotate the key position to a 45 degree angle so that the inserted piece can be positioned to a vertical and horizontal position. I was having difficulty  getting the snap fit to work. After seeing other classmates work I was inspired to try to just do a pressure fit dado peg. It worked very well. It took several attempts to get the fit just right. Early models also had a complete round on one side to create balanced proportions. I took this feature off to allow for the end of the pieces to rest flat.

Joinery Techniques - Building Blocks

Inspiration:

 Goals:

• Use abstract forms
• Use a single connection type
• Create complex interactions using simple, scale-able 'units'

Results:

JNK - JOINERY TECHNIQUES

JNK JOINERY TECHNIQUES

ARCH 600: DIGIFAB

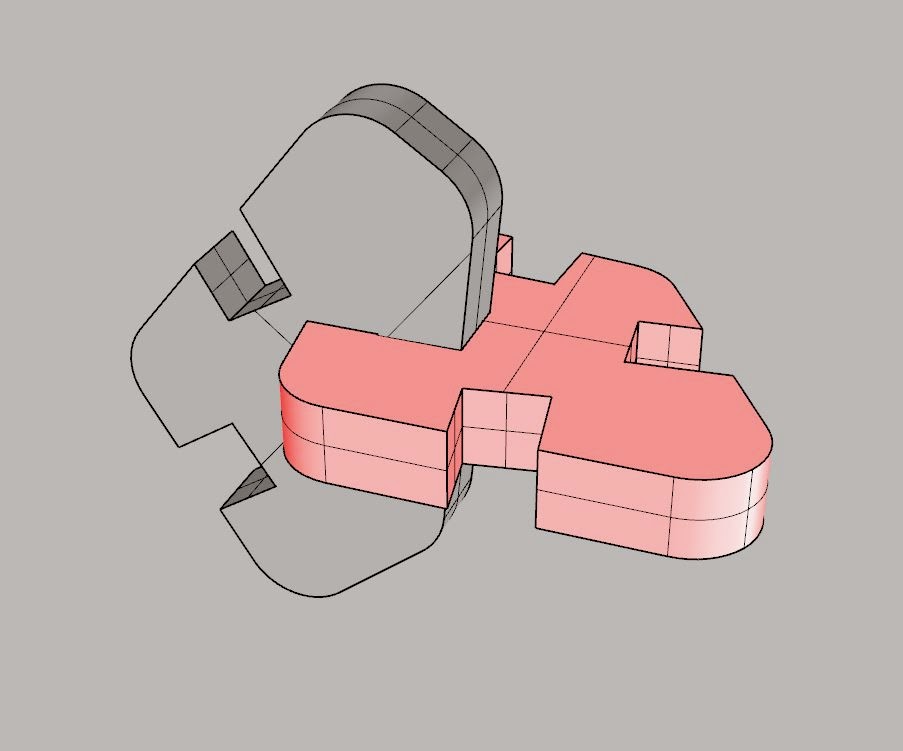

Model in Rhino demonstrating joint method

Rendering from Rhino

Rhino-Cam simulation

CNC

3 different joint size options: 1=1 / 1/32" / 1/16" / 3/32"

Joinery Techniques

Joinery Techniques

Brittany Hediger



Inspiration



Process







Joinery Project

Joinery Project

This joint is the joint that i would like to use in my flatpack furniture set.  I would make the tolerance slightly tighter so that one would have to use a mallet to make the pieces attach to each other.
